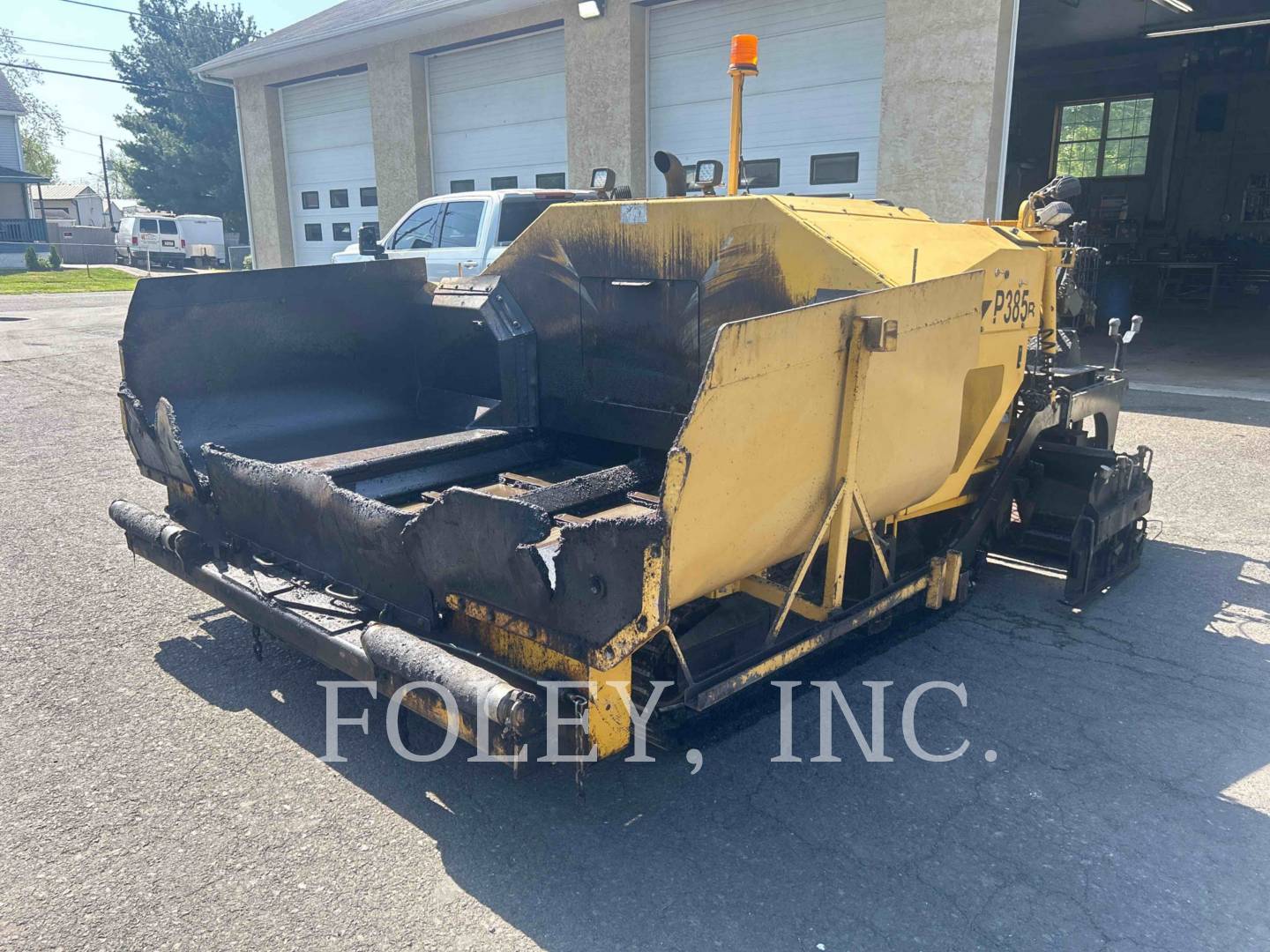

Asphalt Pavers

SE50 V Vibratory Screed

  • Standard Weight
    7239 lb
  • Standard Paving Range
    2.55 - 5.0 m (8' 4" - 16' 4")
  • Standard Paving Range
    2.55 - 5.0 m (8' 4" - 16' 4")
  • Maximum Paving Width
    21.3 ft
Weights
Standard Weight
7239 lb
Operating Specifications
Standard Paving Range
2.55 - 5.0 m (8' 4" - 16' 4")
Standard Paving Range
2.55 - 5.0 m (8' 4" - 16' 4")
Maximum Paving Width
21.3 ft
Maximum Paving Width
21.3 ft
Vibratory Speed Range
0 to 3000 vpm
Crown Range
-4% to +10%
Vibratory Speed Range
0 to 3000 vpm
Heating Time
15 minutes
Heating Time
25 minutes
Maximum Paving Depth
12 in
Extender Height Range
-20 mm to +50 mm
Extender Slope Range
-3% to +10%
Extender Height Range
-20 mm to +50 mm
Extender Slope Range
-3% to +10%
Heating Time
25 minutes
Heating Time
15 minutes
Maximum Paving Depth
12 in
Dimensions
Screed Plate Width
16.0 in
Transport Width
8.3 ft
Screed Plate Width
16 in
Transport Width
8.3 ft
Transport Length
22.1 ft
Transport Length
22.1 ft
Length
92 in
Length
68 in
