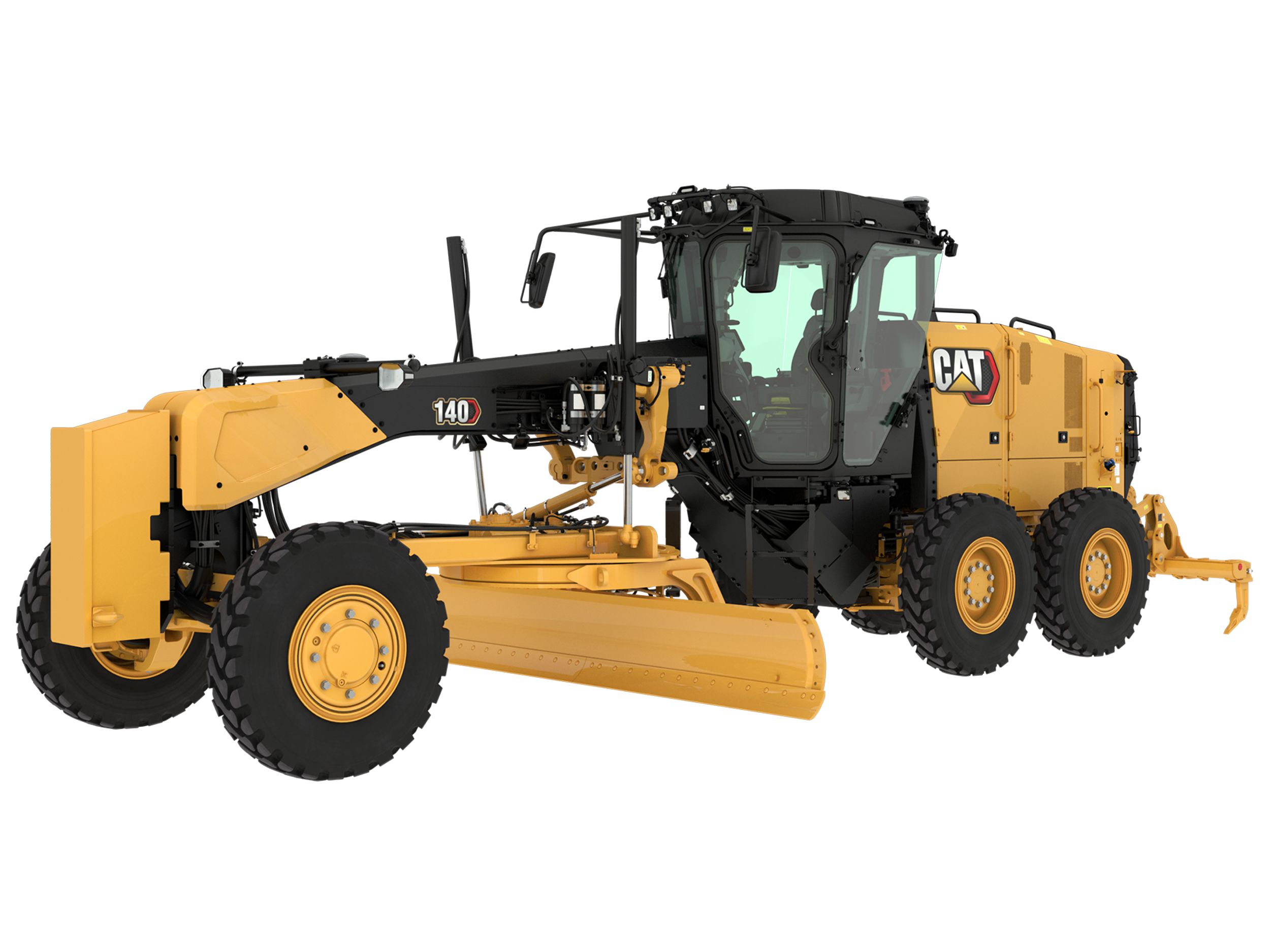

140 Motor Grader
Exterior View
Exterior View
Interior View

140 Motor Grader

Net Power – ISO 9249/SAE J1349248 hp
Engine ModelCat® C7.1
VHP Plus – Gear – Net Power – Forward 1st169 hp
VHP Plus – Gear – Net Power – Forward 2nd176 hp
product-tabs-bg

Learn more about our 140 Motor Grader

The Cat® 140 motor grader is a mid-size machine ideal for road maintenance. It delivers the right balance of power, control, and blade reach for grading, crowning, and ditching. Maintain your gravel, secondary roads in comfort with the redesigned cab.

Net Power - ISO 9249/SAE J1349
248hp
Engine Model
® C7.1" data-metric=""> Cat® C7.1
VHP Plus - Gear - Net Power - Forward 1st
169hp
VHP Plus - Gear - Net Power - Forward 2nd
176hp
VHP Plus - Gear - Net Power - Forward 3rd
182hp
VHP Plus - Gear - Net Power - Forward 4th
192hp
VHP Plus - Gear - Net Power - Forward 5th
197hp
VHP Plus - Gear - Net Power - Forward 6th
205hp
VHP Plus - Gear - Net Power - Forward 7th
213hp
VHP Plus - Gear - Net Power - Forward 8th
233hp
VHP Plus - Gear - Net Power - Reverse 1st
126hp
VHP Plus - Gear - Net Power - Reverse 2nd
176hp
Bore
4.1in
Stroke
5.3in
Displacement
1.9Gal
Number of Cylinders
6
Operating Weight - Typically Equipped
42543lb
Operating Weight - Typically Equipped - Front Axle
11784lb
Operating Weight - Typically Equipped - Rear Axle
30758.9lb
Blade Width
12ft
Lever/Steering Wheel Weight* Tier 4
42168lb
Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 4
43279lb
Joystick Weight* Tier 4
42543lb
Joystick All-Wheel Drive (AWD) Weight* Tier 4
43497lb
Note (1)
* Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment.
Height - Top of Cab
136in
Height - Front Axle Center
24.1in
Height - Top of Cylinders
119.8in
Height - Exhaust Stack
130.4in
Length - Push Plate to Ripper
405in
Length - Front Tire to Rear of Machine
350.8in
Length - Between Tandem Axles
59in
Width - Tire Center Lines
82.2in
Ground Clearance - Rear Axle
13.1in
Note
All dimensions are approximate and apply to all 140 configurations (Non-AWD, AWD, LVR, and Joystick) unless otherwise noted.
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system con
Forward/Reverse Gears
9 Forward / 6 Reverse
Transmission
Countershaft Torque Converter Powershift
Brakes - Service
Dual Circuit Hydraulic
Brakes - Secondary
Dual Circuit Hydraulic
Brakes - Parking
Spring Applied Hydraulic Release
Circuit Type
Parallel
Pump Type
Variable Piston
Pump Output*
3503psi
Maximum System Pressure
3698psi
Reservoir Tank Capacity
15.9Gal
Note
*Pump output measured at 2000 RPM rated speed
Cooling System
11.4Gal
Diesel Exhaust Fluid Tank (Tier 4 Only)
6.6Gal
Engine Crankcase
5.3Gal
Fuel Tank
98Gal
Hydraulic System
15.9Gal
Transmission and Differential
18Gal
Steering
ISO 3449:2005, Level II
Brakes
ISO 3450:2011; AIS-143:2018
Sound
ISO 6396: ISO 6395
Standard and optional equipment may vary. Consult your Cat dealer for details.
Adjustable steering wheel/lever controls
Seat belt
Electric throttle control
Fully redesigned cab with sound suppression and integrated Roll Over Protective Structure (ROPS) and Falling Object Protection System (FOPS)
Full color ten-inch (254 mm) liquid crystal touch screen display
Added storage areas
Information display screen
Entertainment radio ready
Cup holder
Cell phone holder
Dome interior light
Coat hook
Front wipers
Back-up alarm
Grab rails
Hydraulic brakes
Hydraulic system - integrated dead engine implement lower
Hydraulic system - integrated work port pressure relief
Parking brake
Rearview mirror
Side view mirrors
Signaling/warning horn
Cat C7.1 diesel engine
Eco mode
On-demand fan
43° C (109° F) standard capacity
Standard drawbar circle moldboard
Circle drive slip clutch
Reversing lights
Breaker panel
900 CCA standard duty batteries
Electric starter
Rear lights with LED lighting
Halogen lighting
Ground Level DEF and Fuel Fill
Grouped location for engine oil and fuel filters
Extended life coolant
Next Generation Filters for Fuel and Engine Oil
Transmission
Standard and optional equipment may vary. Consult your Cat dealer for details.
Lower front wipers
Mechanical suspension seat
Heated / cooled air suspension seat
Heating/cooling cab system
Defrost fans
Rear wiper
Cab plus
Rear window screen
Digital blade slope meter
Product Link
Four-point safety harness seat belt
Operator Presence System
Rearview camera
Secondary steering system
Walkways
Warning beacon
Heavy duty starter
Transmission with Autoshift
Top Adjust Drawbar
High Performance Circle
Circle drive slip clutch
Circle saver
Remote Pinion Lube
4.9 m (16 foot) Moldboard
145A Brushed Alternator
1,400 CCA heavy duty batteries
Fast fuel fill ready
Underhood Lighting
Fender
Cover, under cab platform
Steering Cylinder Guards
Towing hitch
L3 tires
Sy-Klone pre-cleaner
Lift Groups
High Performance Circle
Counterweight
Push block
Mid-Machine Scarifier (MMS)
Rear Ripper/Scarifier
Moldboards
Front Blade
Lift Groups
High Performance Circle
Counterweight
Push block
Mid-Machine Scarifier (MMS)
Rear Ripper/Scarifier
Moldboards
Front Blade
Snow Wings
V-Plow
Straight Plow
Brooms
