Dozers

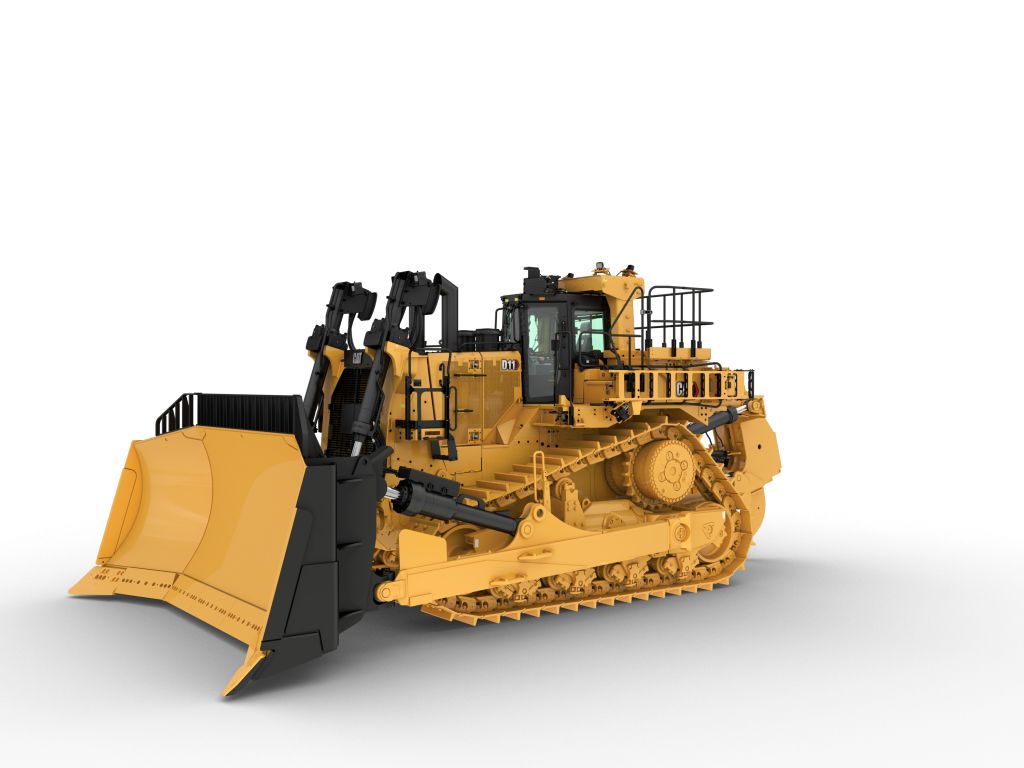

D11 Dozer

  • Engine Model
    Cat® C32
  • Engine Power
    850 hp
  • Displacement
    1959 in³
  • Engine Power
    955 hp
Engine - U.S. EPA Tier 4 Final/EU Stage V
Engine Model
Cat® C32
Engine Power
850 hp
Displacement
1959 in³
Engine Power
955 hp
Note
*Excludes all fan losses.
Note
Engine ratings apply at 1,800 rpm.
Note
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Engine - U.S. EPA Tier 2 Equivalent
Engine Model
Cat® C32
Displacement
1959 in³
Engine Power
850 hp
Engine Power
957 hp
Note
*Excludes all fan losses.
Note
Engine ratings apply at 1,800 rpm.
Note
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Fuel Tank Capacities
Fuel Tank
500 gal (US)
Fuel Tank
475 gal (US)
Service Refill Capacities
Cooling System
46.8 gal (US)
Cooling System Refill
41.7 gal (US)
Engine Crankcase
35.1 gal (US)
Power Train
120 gal (US)
Power Train
103.3 gal (US)
Final Drive
12.4 gal (US)
Roller Frames
24.8 gal (US)
Hydraulic Tank
42.2 gal (US)
Hydraulic System Tank and Chassis
64.7 gal (US)
Hydraulic System Chassis
117.6 gal (US)
Hydraulic System Chassis
143.4 gal (US)
Weights
Operating Weight
229800 lb
Operating Weight
250665 lb
Note
D11 Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note
D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.
Hydraulic Controls
Pump Type
Variable displacement piston pump
Combined Pump Output
177 gal/min
Undercarriage
Shoe Type
Extreme Service
Width
28 in
Width
36 in
Shoes
41
Grouser Height
4 in
Pitch
12.5 in
Ground Clearance
30.6 in
Track Gauge
114 in
Length
175 in
Ground Contact Area
9781 in²
Ground Contact Area
12605 in²
Track Rollers
8
Number of Carrier Rollers
1 per side (optional)
Air Conditioning System
Note
The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons)
Standards
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed).
Sound
The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed).
Transmission
1
2.5 mile/h
2
4.4 mile/h
3
7.6 mile/h
1
3 mile/h
2
5.3 mile/h
3
9.1 mile/h
Drawbar Pull
46250 ft·lbf
Drawbar Pull
148200 ft·lbf
Drawbar Pull
82300 ft·lbf
Blades
Semi
35.6 yd³
Semi
219.8 in
U
45 yd³
U
249.6 in
Reclamation Universal
55 yd³
Reclamation Universal
251.8 in
Carry Dozer
57 yd³
Carry Dozer
263.9 in
Ripper - Single Shank
Maximum penetration force
66000 lb
Maximum penetration depth
63.5 in
Pryout Force
148510 lb
Ripper - Single Shank, Deep Ripping
Maximum penetration force
66110 lb
Maximum penetration depth
85.5 in
Pryout Force
148510 lb
Ripper - Multi-Shank, Adjustable Parallelogram
Overall Beam Width
131.1 in
Maximum Penetration Force
77350 lb
Maximum Penetration
43.3 in
Pry
145640 lb
Dimensions - D11
Ground Clearance
31.4 in
Track Gauge
114 in
Width at Outside of Track
142 in
Height
185.9 in
Length of Track on Ground
175 in
Length with SU
337.8 in
Overall Length SU
414.4 in
Note
*Includes grouser height for total dimensions on hard surfaces.
Dimensions - D11 Carrydozer
Width at Outside of Track
149.8 in
Length with SU
345.1 in
Overall Length SU
421.7 in
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS, Sound-Suppressed Cab
    • High-Definition Primary Touchscreen Display
    • Visibility – Rearview Mirrors
    • Air Conditioner and Heater with Automatic Climate Control
    • Seat – Cloth with Air suspension
    • Cab Glass – Single-Pane Tinted Safety
    • Cab Access – Blade Push Arm Steps and Grab Handle
  • CAT TECHNOLOGY PRODUCTS
    • VIMS
    • Automated Blade Assist (ABA)
    • Cat Product Link Elite (cellular)
  • CAT POWER TRAIN
    • Cat C32 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
    • High-Performance Single-Plane Cooling Module
    • Stator Clutch Torque Divider – Electronic Control
    • Powershift Transmission – Three-Speed Electronic Shift
  • UNDERCARRIAGE
    • Suspension Type Undercarriage
    • Sleeve Bearing Track
    • Lifetime-Lubricated Rollers and Idlers
    • Track Shoe (ES): 710 mm (28 in) Width
  • HYDRAULICS
    • Electronically Controlled, Load-Sensing Dozer Lift and Tilt
    • Electronically Controlled, Load-Sensing Ripper Lift and Pitch
    • Dozer Blade – Dual Tilt
    • Electronically Enabled Blade – Quick Drop
  • ELECTRICAL
    • 24V Electric Start, Dual Starters
    • Batteries – 4 × 4,200-Amp Hour, 12V
    • Battery Isolation
    • Lights – Halogen – 13 Positions
  • SERVICE AND MAINTENANCE
    • Ecology Fluid Drains – All Compartments
    • Hinged Bottom Guards
    • High-Speed Oil Change – Engine and Transmission
    • Ground-Level Fast Fuel Fill
    • Ground-Level Electrical Service Station
    • S·O·SSM Fluid Sampling Ports
    • Diagnostic Connector
  • OPERATOR ENVIRONMENT
    • MineStar Terrain Display
    • Visibility – Dual Camera
    • Visibility – Four Cameras, 360 Degree View
    • Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
    • Cab Glass – Dual-Pane Laminated Impact Safety
    • Cab Glass – High-Pressure Safety (40 psi/275 kPa)
    • Cab Access – Powered Ladder
  • CAT TECHNOLOGY PRODUCTS
    • AutoCarry
    • Auto Ripper Control
    • Cat Terrain with 3D Blade Control
    • Cat Terrain Ready
    • Cat Product Link Elite Dual Mode (cellular + satellite)
    • Cat Command for Dozing Ready
  • CAT POWER TRAIN
    • Hydraulic Cooling Fan – Automatic Reversing
  • UNDERCARRIAGE
    • Track Shoes (ES): 810/915 mm (32/36 in) Width (various configurations)
    • Track Links – High Abrasion – Tall Link
    • Track Links – Heavy Duty XL – Duralink
    • Track Shoe – Abrasion Resistant
    • Track Shoe – Anti-Packing Round Hole
    • Abrasion Rollers and Idlers
    • Cold Weather Rollers and Idlers
    • Sound Suppression Undercarriage
    • Carrier Roller
  • HYDRAULICS
    • Carrydozer Hydraulics
    • Dozer Extended Blade Pitch
    • Ripper Pin Puller
  • ELECTRICAL
    • Battery Isolation – Dual Pole
    • Lights – LED – Premium Package
  • SERVICE AND MAINTENANCE
    • Sound Reduction Sealed Bottom Guards
    • Ground-Level Fluid Fill and Drain
    • Ripper Lubrication – Autolube with Ground-Level Fill
    • Ripper Lubrication – Grouped – Ground-Level Fill
  • REAR ATTACHMENTS
    • Ripper – Single Shank with Pin Puller
    • Ripper – Single Shank Pushblock with Pin Puller
    • Ripper – Single Shank with Pin Puller – Heavy
    • Ripper – Multi Shank (three shank)
    • Ripper – Multi Shank – Heavy (three shank)
    • Ripper – Multi Shank Leach Pad with Pin Puller
    • Ripper – Multi Shank – Coal (five shank)
    • Counterweight – Rear
    • Drawbar with Counterweight
  • BLADES
    • Semi-Universal (27.2 m³/35.6 yd³)
    • Universal (34.4 m³/45.0 yd³)
    • Carrydozer (43.6 m³/57 yd³)
    • Reclamation Universal (42 m³/55 yd³)
    • Reclamation Universal (53.5 m³/70 yd³)
    • Coal Universal (75 m³/98.0 yd³)
    • Coal Universal (65 m³/85.5 yd³)
  • OTHER
    • Fire Suppression Ready
    • Fire Suppression Installed
