Excavators

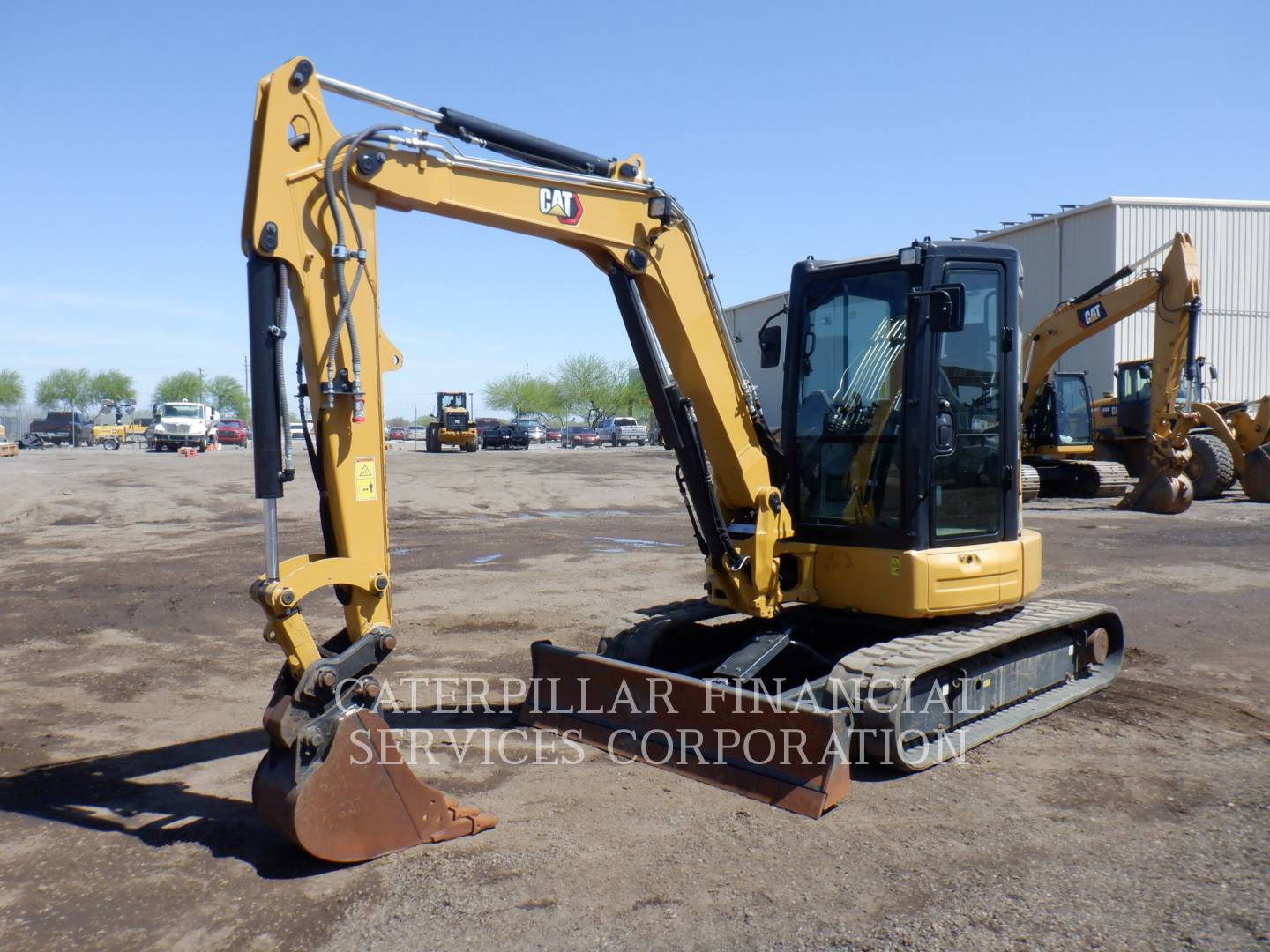

302 CR Mini Hydraulic Excavator

  • Cab
    221 lb
  • Net Power
    21 HP
  • Operating Weight
    4987 lb
  • Dig Depth
    101.2 in
Weight Increase from Minimum Configuration
Cab
221 lb
Long Stick
18 lb
Steel Tracks
132 lb
Expandable Undercarriage
212 lb
Engine
Net Power
21 HP
Engine Model
C1.1
Bore
3 in
Displacement
69 in³
Gross Power
21.6 HP
Rated Net Power
19.2 HP
Stroke
3.2 in
Note
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note
Engine power is tested per ISO 14396:2002.
Note
Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net Power
21 HP
Gross Power
21.6 HP
Weights
Operating Weight
4987 lb
Maximum Operating Weight with Cab
4861 lb
Maximum Operating Weight with Canopy
4588 lb
Minimum Operating Weight with Cab
4502 lb
Minimum Operating Weight with Canopy
4229 lb
Note
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Note
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Maximum Operating Weight with Cab
4987 lb
Minimum Operating Weight with Cab
4535 lb
Note
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
EU
4718 lb
EU
4508 lb
Dimensions - Long Stick
Dig Depth
101.2 in
Boom Height
40.2 in
Boom In Reach
65.4 in
Boom Swing
65 °
Boom Swing
50 °
Maximum Blade Depth
11.6 in
Maximum Blade Height
11.2 in
Maximum Dig Height
142.5 in
Maximum Dump Clearance
103.9 in
Maximum Reach
168.1 in
Maximum Reach
165.7 in
Minimum Ground Clearance Below Undercarriage
5.9 in
Note
*Overall Shipping Length depends on blade position during shipment.
O
90.6 in
O
72.8 in
Overall Shipping Length
152.8 in
Stick Length
45.7 in
Swing Bearing
17.4 in
Tail Swing
29.5 in
Track Belt
9.8 in
Track Width
55.12 in
Track Width
42.9 in
Vertical Wall
76.4 in
Blade
Height
8.9 in
Note
*Expanded – 1400 mm (55 in)
Width
42.9 in
Certification - Cab and Canopy
Roll Over Protective Structure
ISO 12117-2:2008
Tip Over Protective Structure
ISO 12117:1997
Top Guard
ISO 10262:1998 (Level I)
Dimensions - Standard Stick
Boom Height
42.1 in
Boom In Reach
65.4 in
Boom Swing
65 °
Boom Swing
50 °
Dig Depth
93.3 in
Maximum Blade Depth
11.6 in
Maximum Blade Height
11.2 in
Maximum Dig Height
139.8 in
Maximum Dump Clearance
100.8 in
Maximum Reach
161.8 in
Maximum Reach
159.1 in
Minimum Ground Clearance Below Undercarriage
5.9 in
O
90.6 in
O
72.8 in
Overall Shipping Length
153.5 in
Stick Length
37.8 in
Swing Bearing
17.4 in
Tail Swing
29.5 in
Track Belt
9.8 in
Track Width
55.12 in
Track Width
42.9 in
Vertical Wall
72.8 in
Note
*Overall Shipping Length depends on blade position during shipment.
Hydraulic System
Auxiliary Circuit
8.7 gal/min
Auxiliary Circuit
3553.4 psi
Auxiliary Circuit
3.7 gal/min
Auxiliary Circuit
3553.4 psi
Digging Force
4406.3 lbf
Digging Force
2203.1 lbf
Digging Force
2540.3 lbf
Operating Pressure
3553.4 psi
Operating Pressure
2132.1 psi
Operating Pressure
3553.4 psi
Pump Flow at 2
17.4 gal/min
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Service Refill Capacities
Cooling System
1 gal (US)
Engine Oil
1.2 gal (US)
Fuel Tank
6.9 gal (US)
Hydraulic System
6.9 gal (US)
Hydraulic Tank
4.8 gal (US)
Sound
Average Exterior Sound Pressure
93 dB(A)
Note
European Union Directive “2000/14/EC”
Operator Sound Pressure
73 dB(A)
Swing System
Machine Swing Speed
9.8 r/min
Travel System
Gradeability
30 degrees
Ground Pressure
3.9 psi
Ground Pressure
3.4 psi
Maximum Traction Force
2967.5 lbf
Maximum Traction Force
4496.2 lbf
Travel Speed
2.7 mile/h
Travel Speed
1.8 mile/h
  • ENGINE
    • Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Two Speed Travel
    • Fuel Water Separator
    • Power on Demand (not available in all regions)
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
  • HYDRAULICS
    • Smart Tech Electronic Pump
    • Accumulator
    • Automatic Swing Brake
    • Auxiliary Hydraulic Lines
    • One and Two Way Auxiliary Flow
    • Continuous Auxiliary Flow
    • Auxiliary Line Quick Disconnects
  • OPERATOR ENVIRONMENT
    • Tilt-up Canopy or Tilt-Up Cab
    • Top Guard ISO 10262:1998 Level I
    • ROPS – ISO 12117-2:2008
    • TOPS – ISO 12117:1997
    • Machine 2-Point Lifting
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer (optional in some regions)
    • Adjustable Wrist Rests
    • Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Machine Security
    • Machine Security – Standard Key with Pass Code
    • Fabric Suspension Seat (Cab only)
    • Vinyl Suspension Seat (Canopy only)
    • Hydraulic Lockout – All Controls
    • Retractable High Visibility Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • Storage Pocket
    • Skylight
    • Mounting Bosses for Front
    • Signaling/Warning Horn
    • Interior Light (Cab only)
    • Boom Light, Halogen
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Hour Meter with Wake Up Switch
  • UNDERCARRIAGE
    • Expandable Undercarriage
    • Rubber Belt (250 mm/10 in wide)
    • Dozer Blade
    • Dozer Blade Float
    • Hydraulic Track Adjusters
    • Tie Downs on Track Frame
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (1850 mm/73 in)
    • Standard Stick (960 mm/37.8 in)
    • Front Shovel Capable
    • Front Shovel Capable – Pin-On
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (optional in some regions)
  • ELECTRICAL
    • 12 Volt Battery
    • Software (machine and monitor)
    • Maintenance Free Battery
    • Signaling/Warning Horn
    • 12 Volt Power Socket
  • OPERATOR ENVIRONMENT
    • Cab with Air Conditioning
    • Cab with Heater
    • Control Pattern Changer (optional in some regions)
    • No Travel Pedals and Hand Levers
    • Machine Security – Push to Start with Key Fob/Pass Code
    • Vinyl Non-Suspension Seat (Canopy only)
    • LED Front Lights
    • LED Front and Rear Lights
    • LED Boom Light
    • Mirrors Left and Right
    • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
  • UNDERCARRIAGE
    • Steel Track (250 mm/10 in wide)
  • BOOM, STICK AND LINKAGES
    • Long Stick (1160 mm/45.7 in)
    • Front Shovel Capable – Dual Lock Manual Coupler
    • Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Hydraulic Quick Coupler Lines (not available in all regions)
  • ELECTRICAL
    • Battery Disconnect
    • Product Link PL243 (regulations apply)
    • Product Link PLE643 (regulations apply)
    • Travel Alarm (standard in some regions)
  • GUARDING
    • Guard, Canopy
    • Guard, Mesh
  • OTHER
    • Bio Oil Capable
    • Eco Drain
    • Water Jacket Heater
