3516E High Displacment

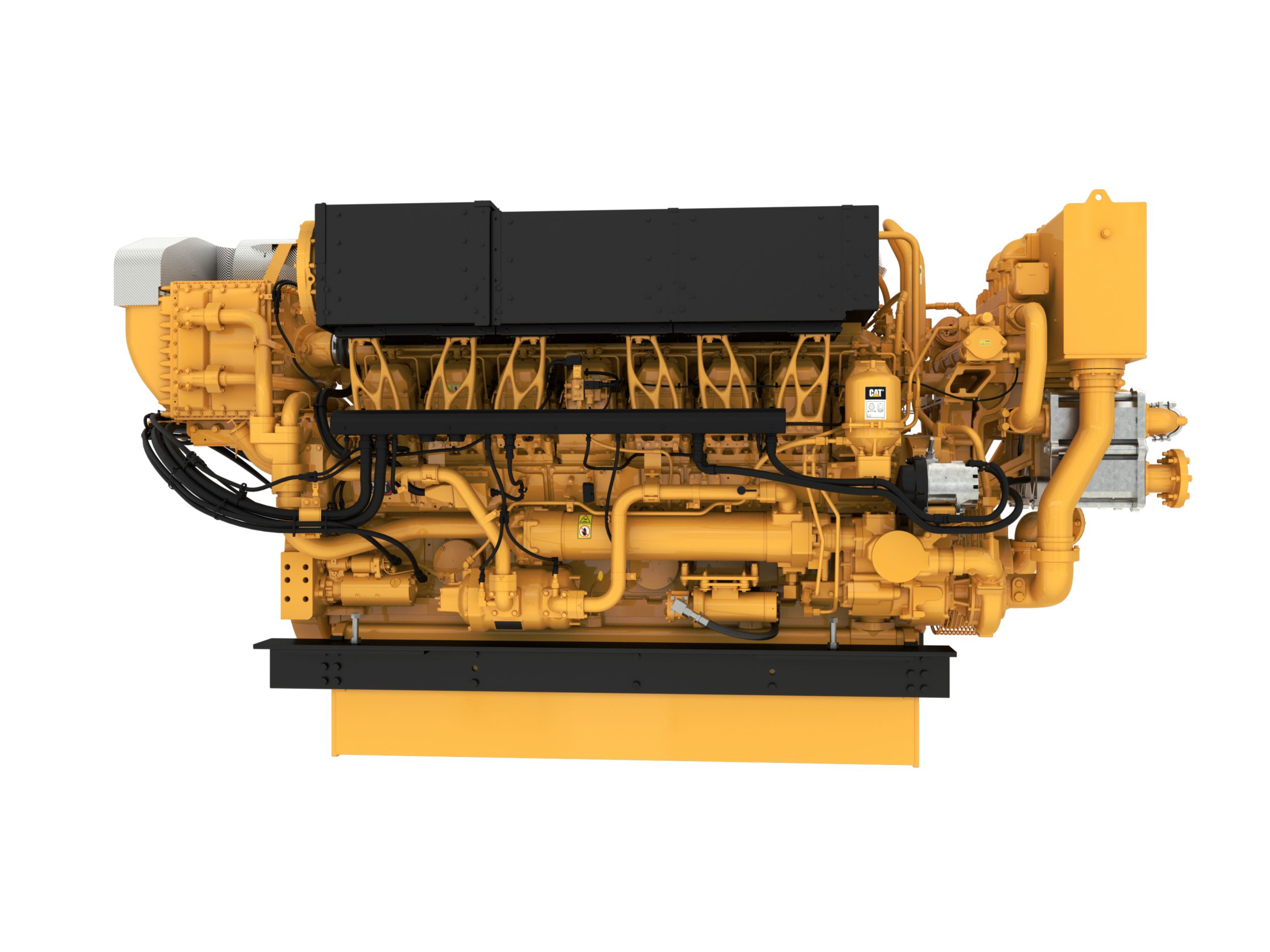

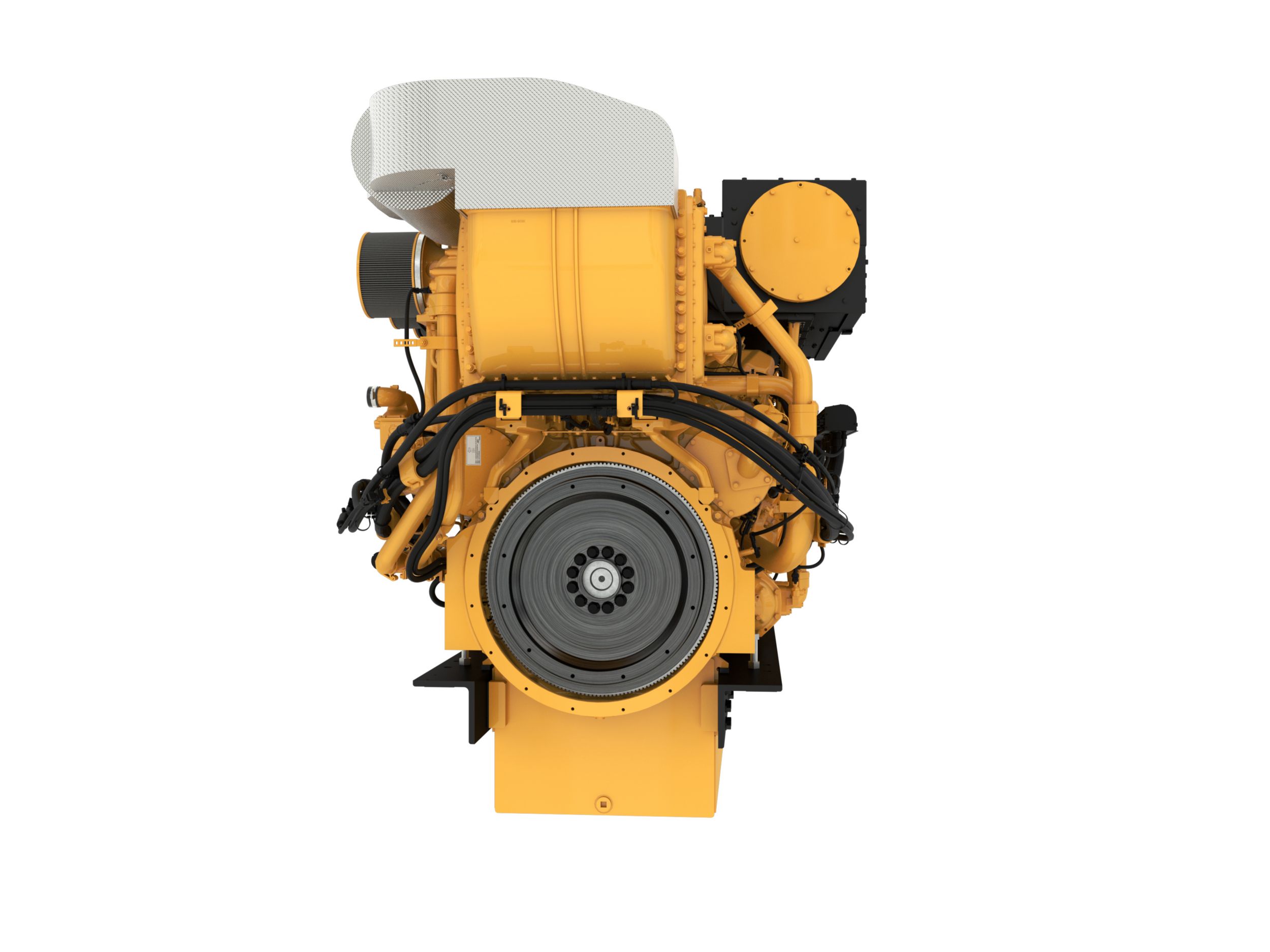

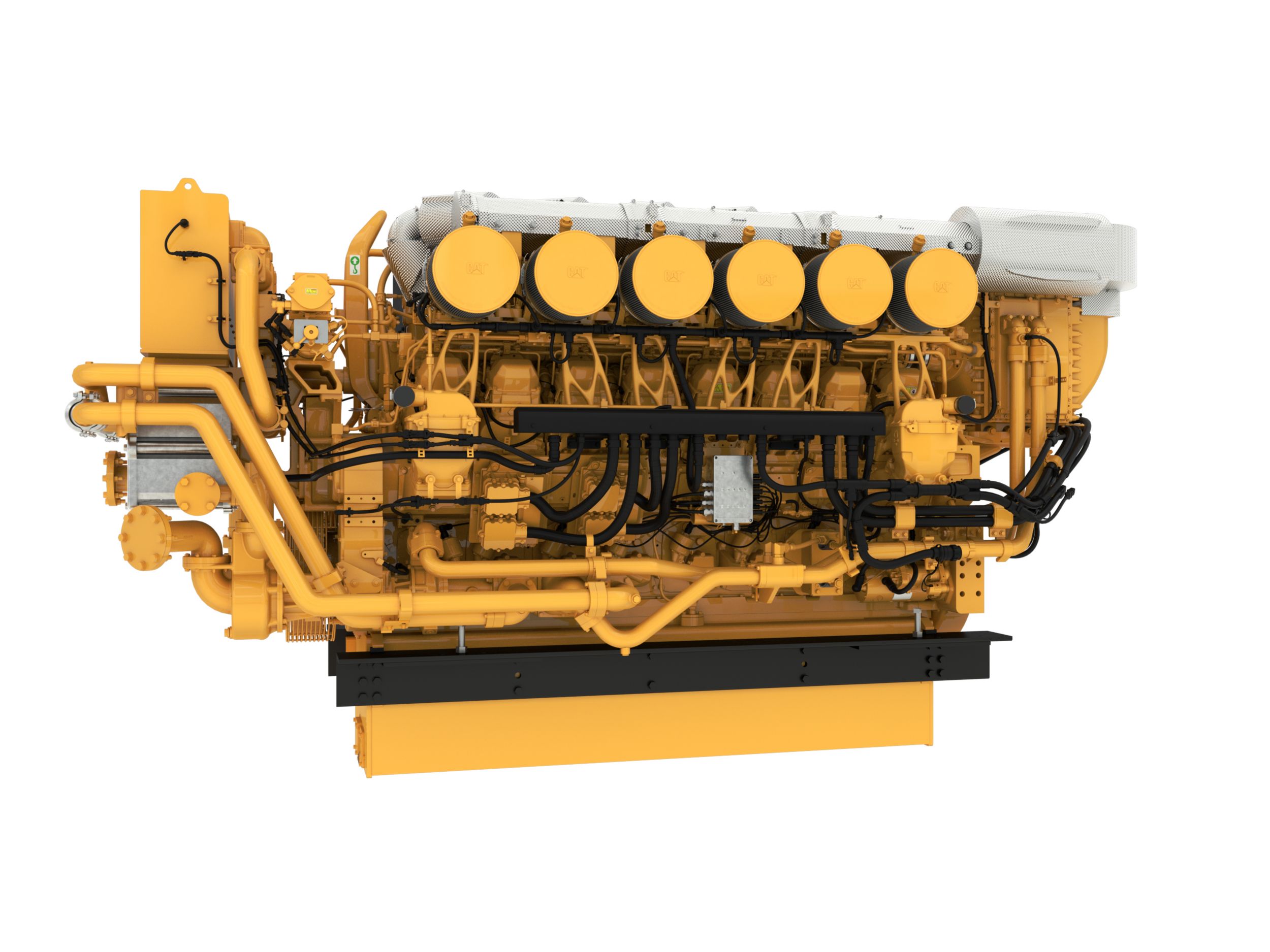

Exterior View

3516E High Displacment

ApplicationWorkboat
Speed Range1800 rpm
EmissionsIMO II/ IMO III
AspirationSequential Turbocharged / Aftercooled
product-tabs-bg

Learn more about our 3516E High Displacment

The Cat® 3516E High Output commercial propulsion engine is built for demanding workboat operations that require fast response, sustained power and dependable performance. With high torque at low rpm, rapid throttle response and ratings up to 4023 bhp (3000 bkW), it delivers power on demand while supporting easier vessel integration and flexible emissions configurations for global operating environments.

Application
Workboat
Speed Range
1800 rpm
Emissions
IMO II/ IMO III
Aspiration
Sequential Turbocharged / Aftercooled
Bore
6.69in
Stroke
8.46in
Displacement
4766in³
Rotation from Flywheel End
Counterclockwise or Clockwise
Configuration
V 16, 4-Stroke Cycle Diesel
Length
123in
Height
89in
Width
71in
Dry Weight
25353lb
Power Range
3151 - 4023 bhp (2350 - 3000 bkW)
IMO II /IMO III Emissions
Corrosion resistant aftercooler core
Sequential Water-Cooled Turbochargers
Water Cooled Exhaust Manifold
Vibration Damper and Guard
Duplex Fuel Filtration
Self-Cleaning, Centrifugal Oil Filtration
Serviceable Hard Heat Shields
Dual A5 Engine Control Modules
Meets SOLAS Regulations
LECP2 Instrument Control Panel
Rear Mounted Plate-type Heat Exchanger
SCAC & Jacket Water Expansion Tank
Marine Classification Society Compliance
Power Take-off
Certified Marine Alarm & Protection System
LECP3 Instrument Control Panel
Sea Water Auxiliary Pump
Mounting Rails
CW or CCW Rotation
