Optimized Power Solutions
Any size or shape. In any regulatory environment. When you need power, Caterpillar is equal to the challenge. Maximize your ROI with Caterpillar’s new series of diesel generator set ratings for proven standby power solutions. These gensets have been re-engineered with higher power densities to meet challenging restrictions on capital, site size, emissions, and cost. Cat now offers seven new ratings based on existing, proven platforms that deliver the benefits of high power density to our customers around the globe.

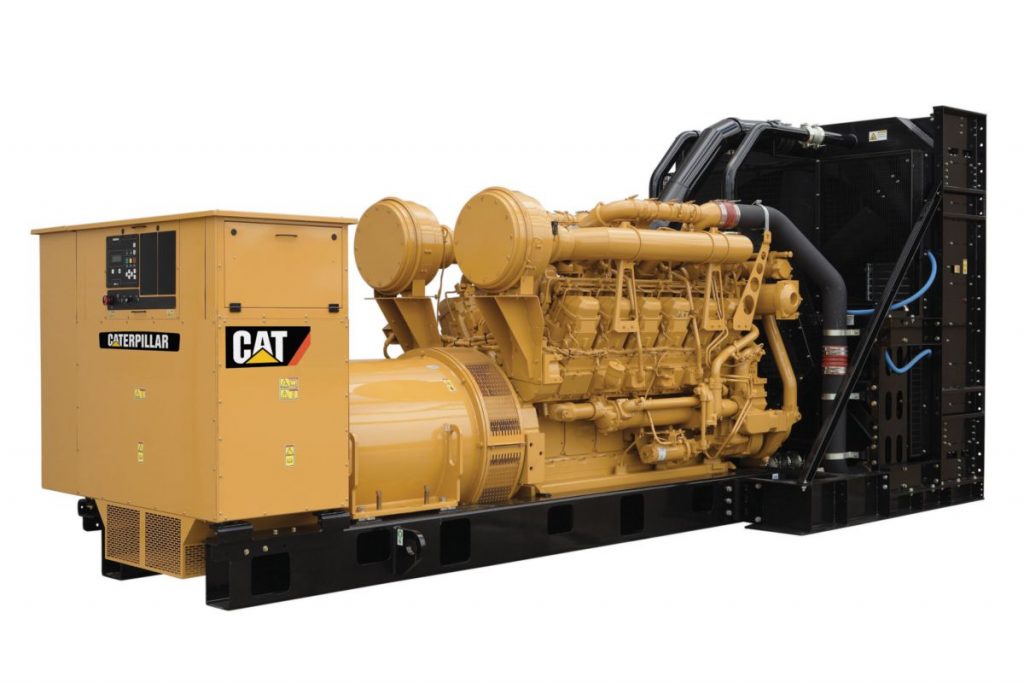

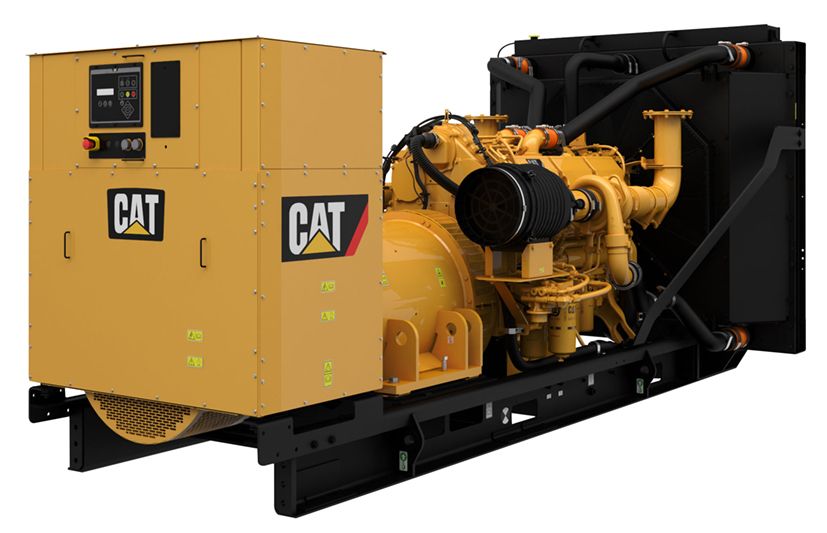

1250 EKW – CAT® C32 and 1500 KVA – CAT® C32
These newly rated Cat C32 generator sets provide higher power density for standby and mission-critical power applications. They significantly reduce costs through reduced footprint and weight.

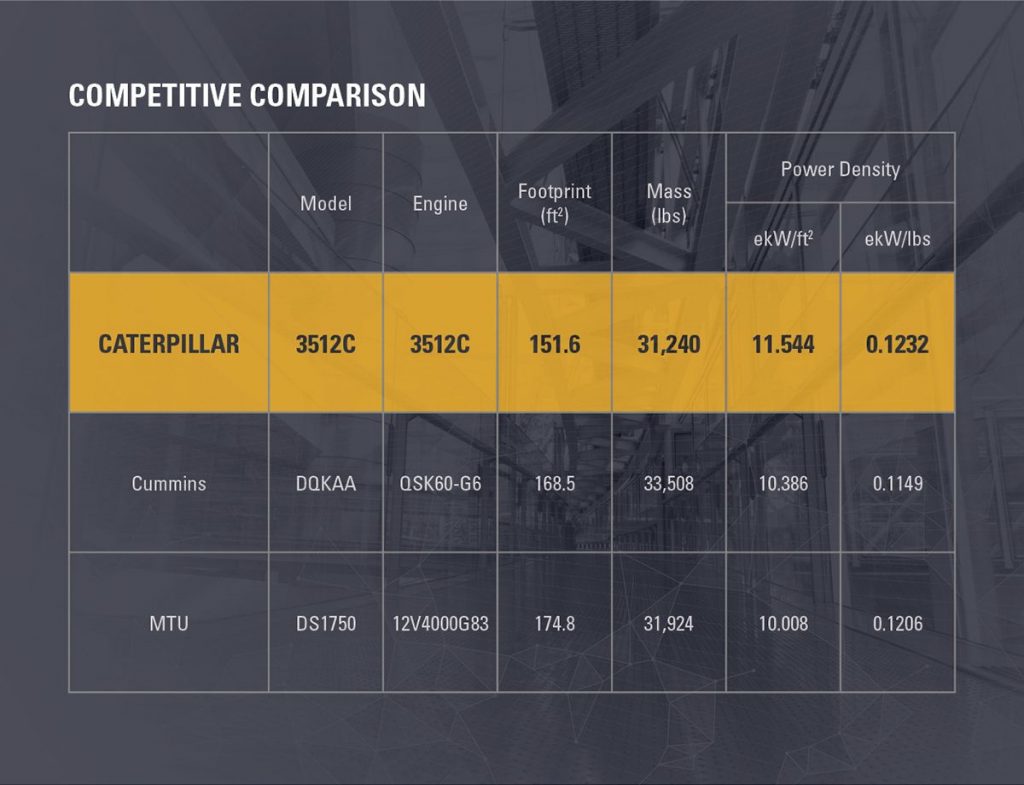

The gensets feature a smaller footprint and up to 44 percent more power density than competitive power solutions on the market today.
1750 EKW – CAT 3512C
Rated at 1,750 ekW for 60 Hz standby applications, the Cat 3512C generator set offers reliable backup power from an optimally sized engine and a reduced overall footprint that delivers lower overall site preparation, transportation, installation and maintenance costs, reduced fuel consumption, and lower emissions.

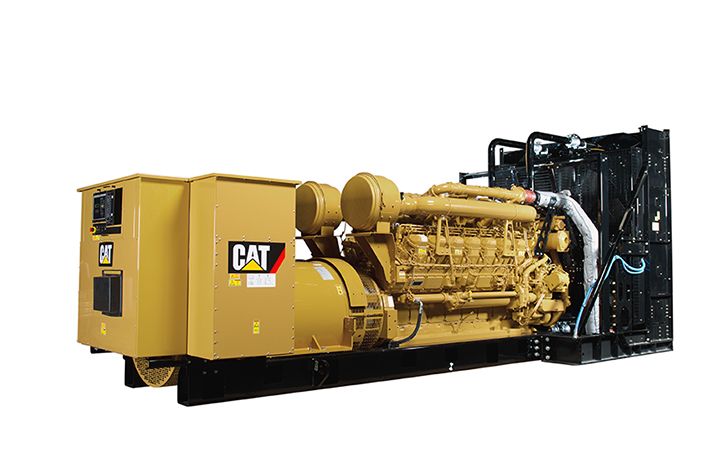

2,250 KVA, 2,500 KVA, 2,750 KVA, 3,000 KVA, 3,125 KVA – CAT 3516C
Power ratings for Cat 3516C diesel generator sets will help customers in Western Europe and other global markets specify solutions that meet power needs and emissions targets with more precision.
Low-NOx, 50-Hz power ratings of 2,250 kVA, 2,500 kVA and 2,750 kVA have been designed for use in regulated emissions environments and applications. Two additional 50 Hz ratings of 3,000 kVA and 3125 kVA with certification to U.S. EPA Tier 2 emissions regulations are also available. These gensets supply reliable backup power from an optimally sized engine that enables lower costs for transportation, installation, maintenance, and ancillary enclosures.

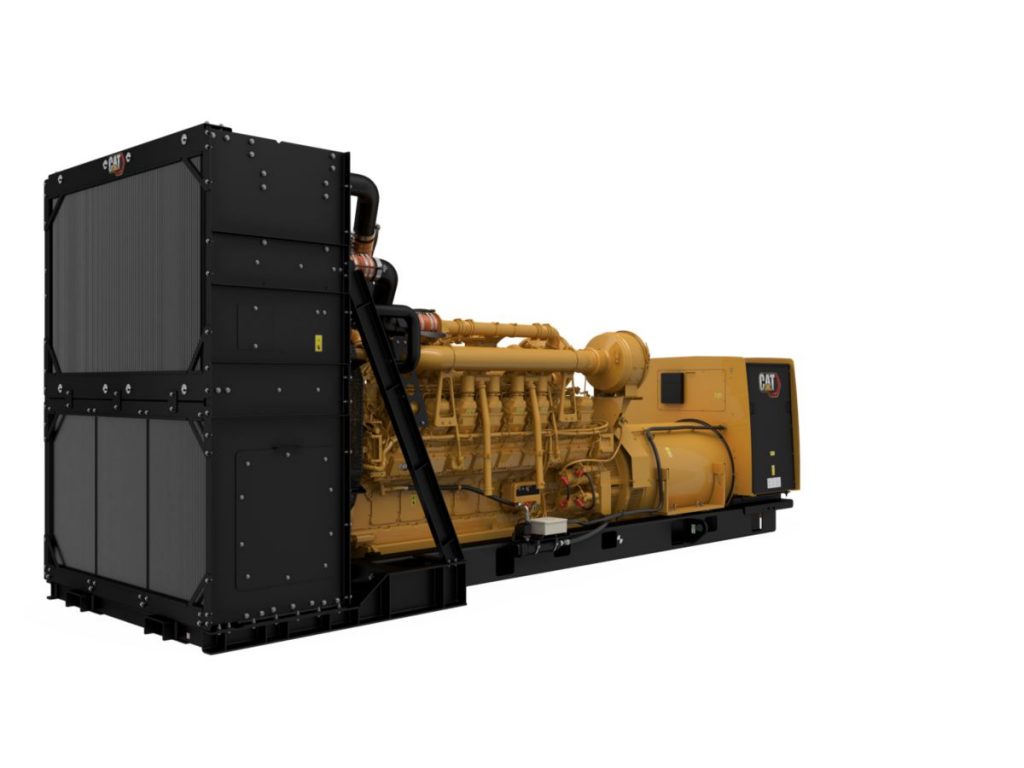

2750 EKW – CAT 3516E

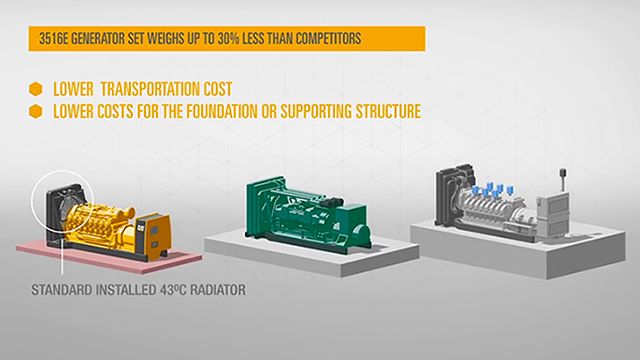

The newly rated Cat 3516E offers reliable backup power from a footprint of 220.8 square feet – saving up to 12 percent installed space compared with competing gensets of similar ratings. Certified to U.S. EPA Stationary Emergency Regulations, this reliable package is the result of the ongoing refinement of the Cat 3500 Series engine, which has demonstrated its performance and durability in hundreds of thousands of installations around the world.
The Cat 3516E can be equipped with a low- or high-voltage alternator, and utilizes the field-proven Cat ADEM™ A5 engine control module (ECM), which integrates all engine functions including ignition, governing, air-fuel ratio control, and engine protection.
Maximizing the return on investment for standby power requires customers to specify a solution that is precisely sized to balance power availability and reliability with lower costs,” said Lenaik Andrieux, general manager for the Caterpillar Large Electric Power Division. “These standby generator sets with improved power densities will allow customers to fine-tune the selection of the power they need through a compact package that can significantly reduce their costs for both the short and long term.
